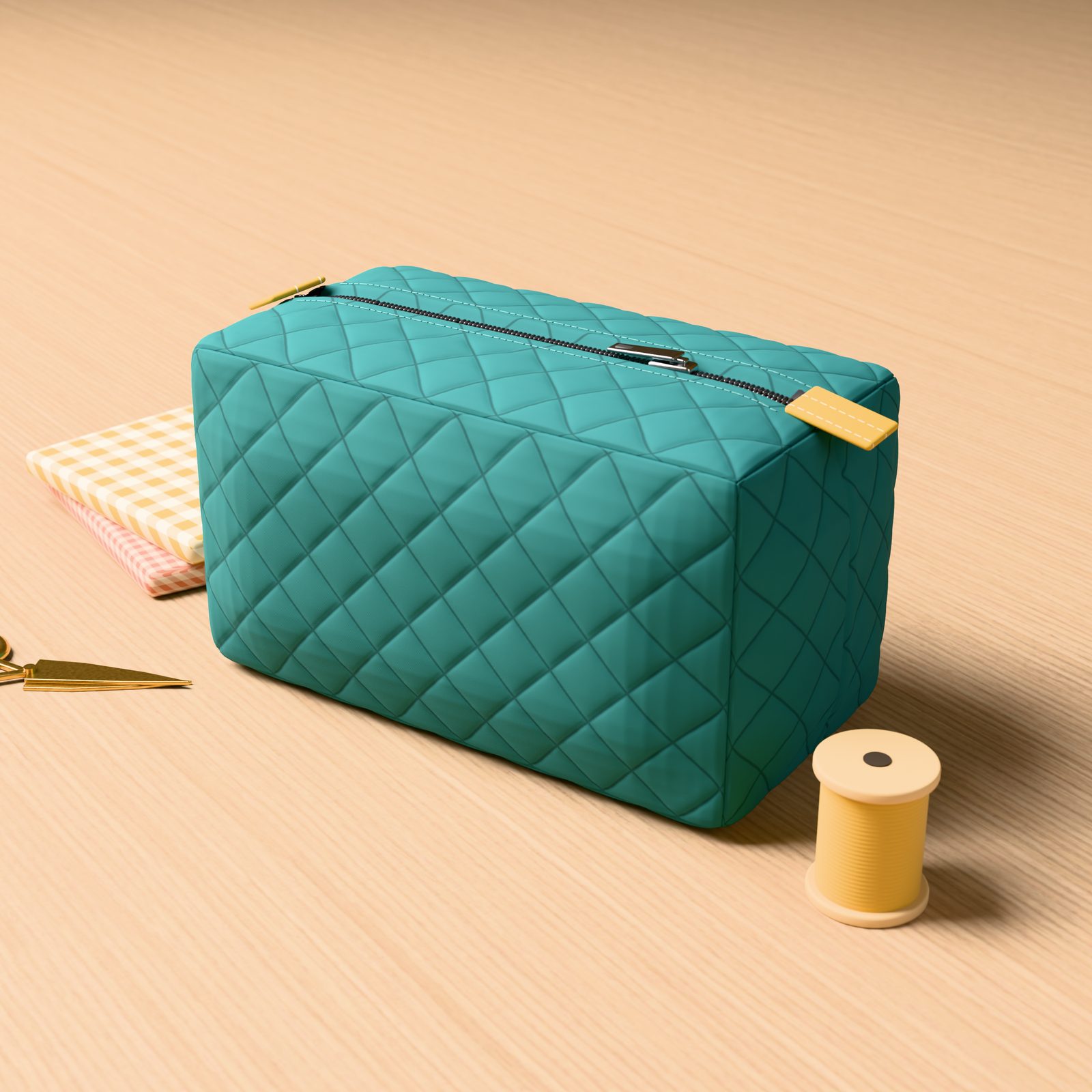

Quilted Boxy Pouch Sewing Pattern: the finished piece

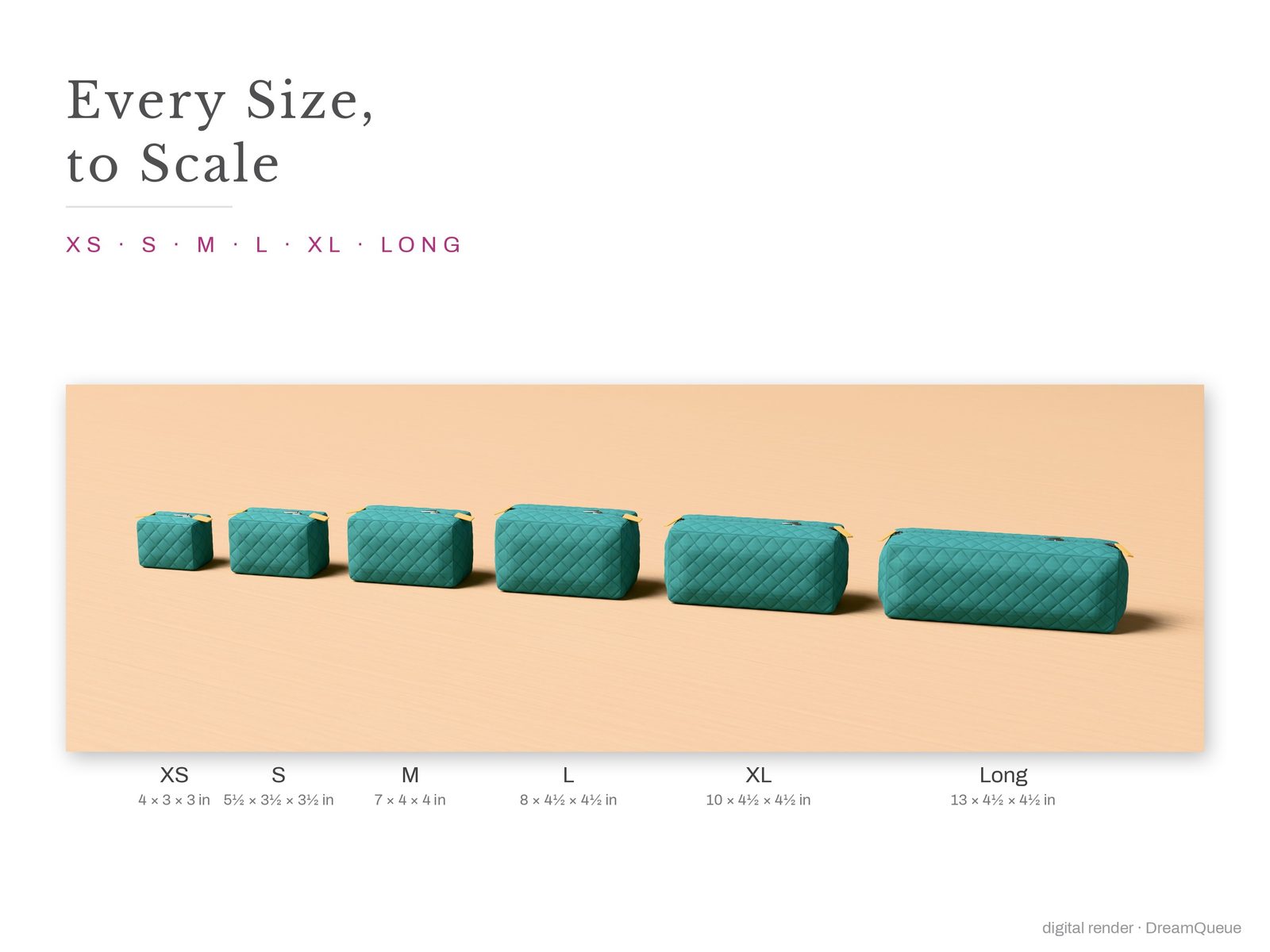

Quilted Boxy Pouch in every size, side by side to scale

Quilted Boxy Pouch pattern pages: size table, supplies and cutting chart

Quilted Boxy Pouch construction diagrams, step by step

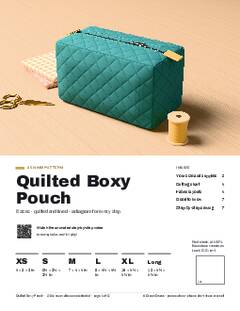

Quilted Boxy Pouch pattern cover page: large print, clear layout

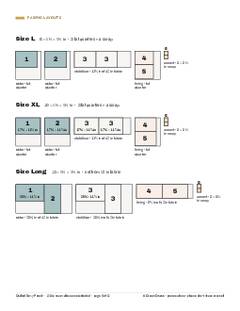

Quilted Boxy Pouch fabric layouts for every size

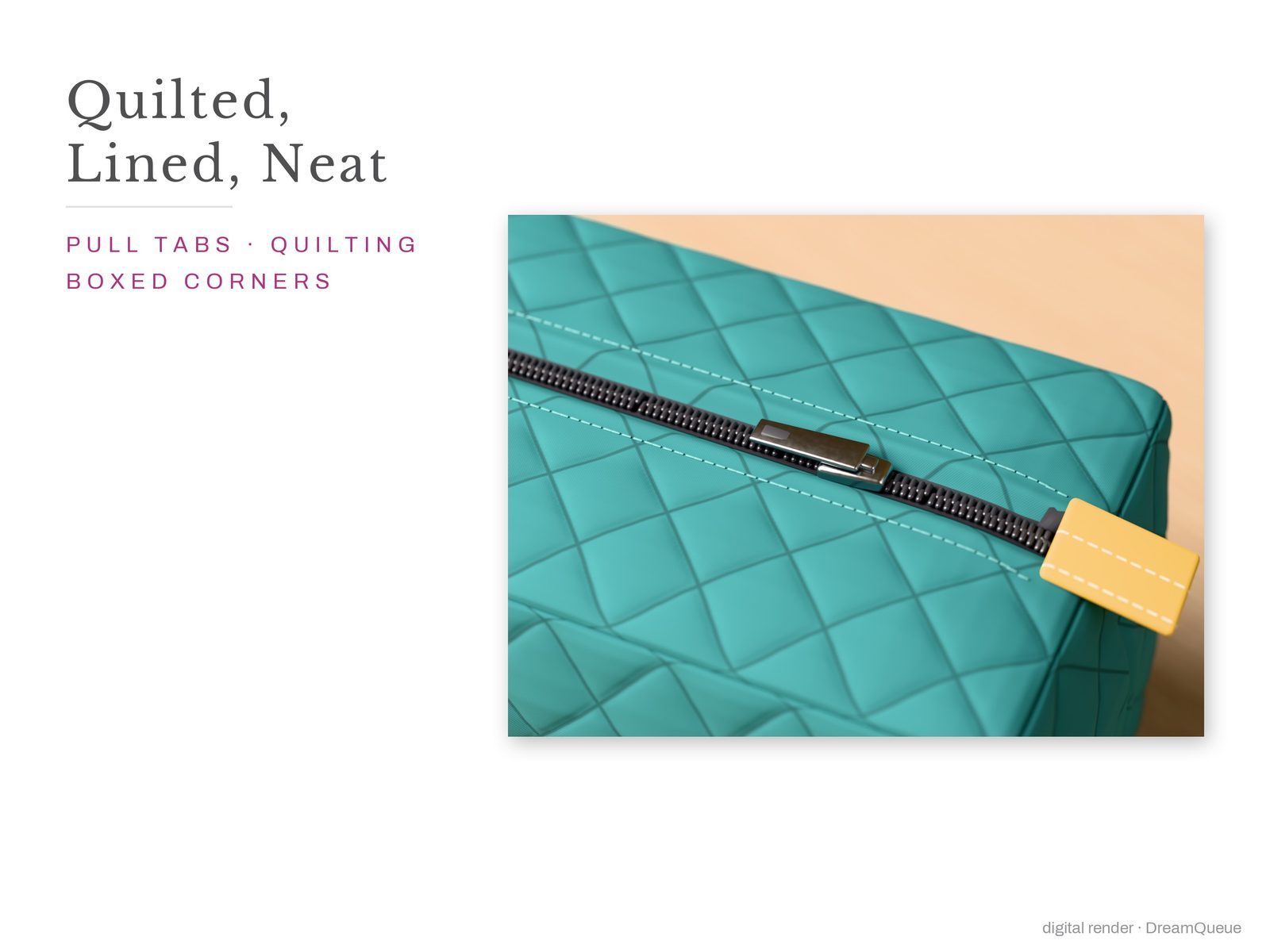

Close-up of the quilting and zipper on the Quilted Boxy Pouch

Make it yours: the Quilted Boxy Pouch in four more colorways

Quilted bags

Quilted Boxy Pouch Sewing Pattern

Quilted panels, a boxed base and one zipper; straight seams only. 6 sizes: XS, S, M, L, XL, Long.

6 sizes · XS, S, M, L, XL, Long
Skill · Confident beginner
You get · PDF download, 12 pages, US Letter and A4

Checkout is on Etsy. You download the PDF right after paying, then print at 100 %. How it works

Sizes

XS XS · 4 × 3 × 3 in · the phone is 2¾ × 5¾ in
S S · 5½ × 3½ × 3½ in · the phone is 2¾ × 5¾ in
M M · 7 × 4 × 4 in · the phone is 2¾ × 5¾ in
L L · 8 × 4½ × 4½ in · the phone is 2¾ × 5¾ in
XL XL · 10 × 4½ × 4½ in · the phone is 2¾ × 5¾ in
Long Long · 13 × 4½ × 4½ in · the phone is 2¾ × 5¾ in

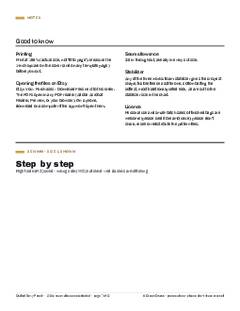

Printing and license

Print at 100 % and check the 1-inch test square; Letter and A4 included. Personal use and small-batch sales of finished items are welcome (credit DreamQueue); please don't share the files. Digital download, pictures are renders.

About the Quilted Boxy Pouch

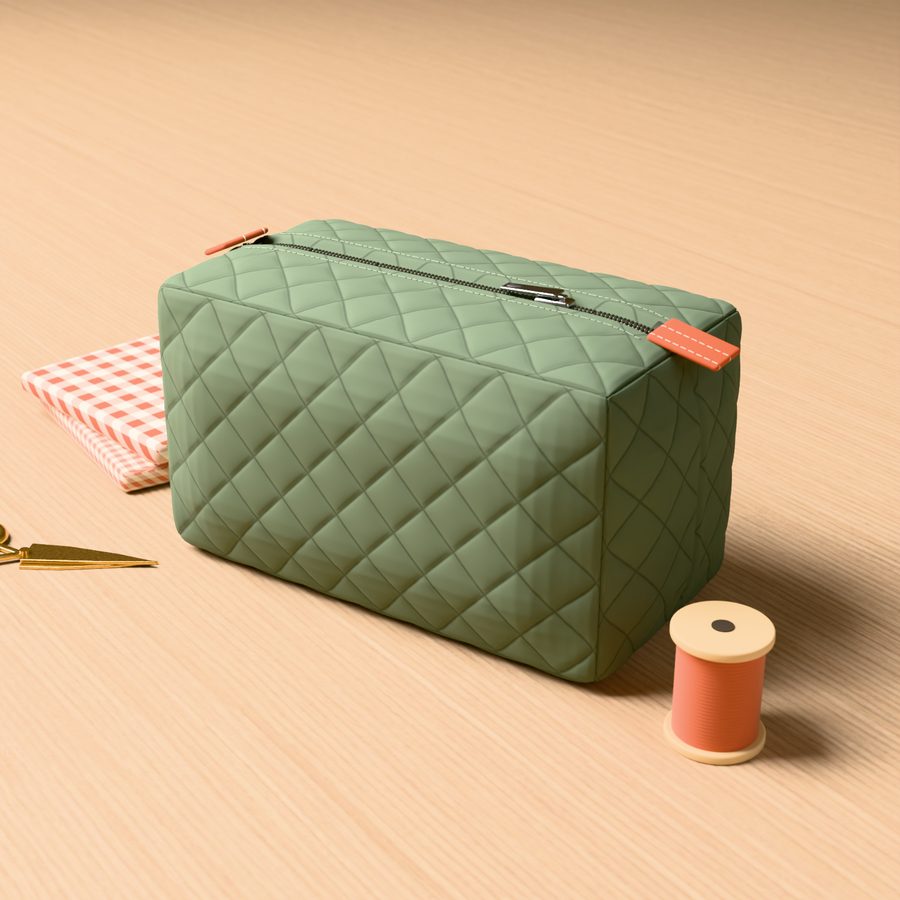

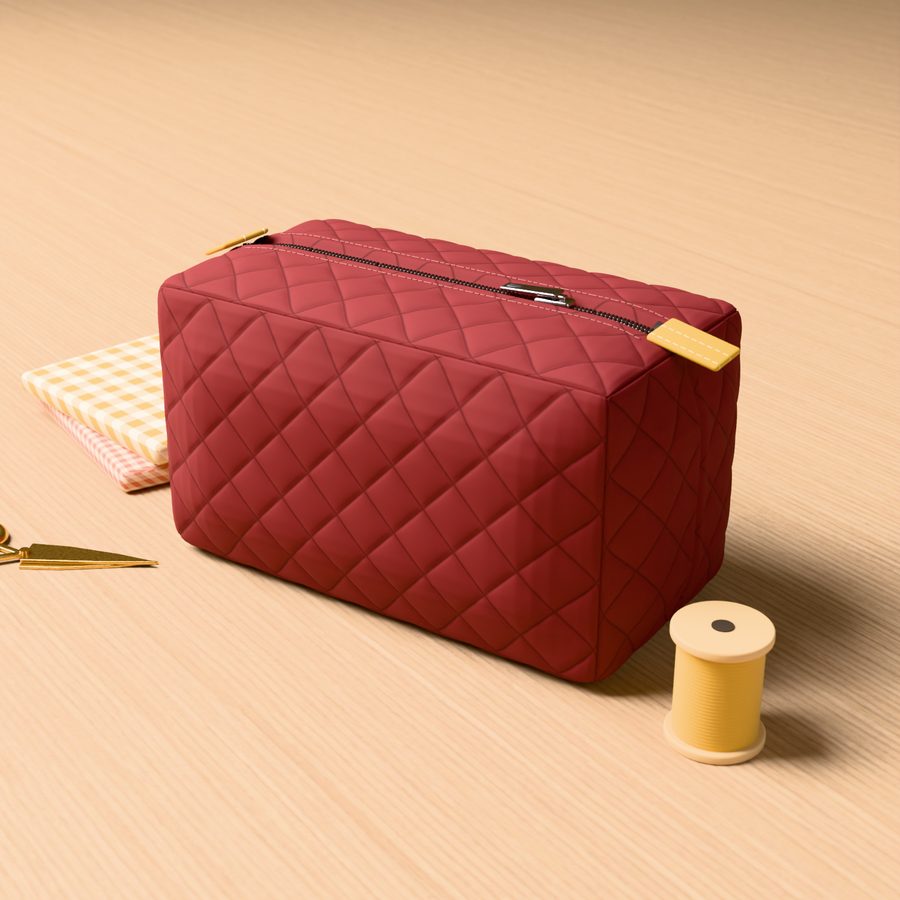

A lined, quilted pouch that stands up on its own, thanks to boxed corners at the top and bottom and a zipper across the top. You quilt the outer panels oversize and then trim them to size, so the finished pouch matches the pattern no matter how much your quilting draws the fabric in. Every size works from fat quarters. Make the small sizes as gifts and the long one for brushes, pens or knitting needles.

Step-by-step video included

The pattern comes with an animated video of the whole build: 9 steps drawn from the pattern's own diagrams, narrated, with captions on and piece numbers that match the cut list. Each step in the PDF has a QR code that opens its part of the video.

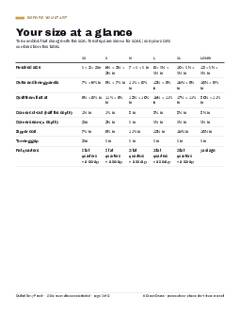

Quilted Boxy Pouch sizes

Size	W × H × D (in)	cm	Zipper coil	Holds
XS	4 × 3 × 3 in	10 × 7.5 × 7.5 cm	7¾ in	earbuds, lip balm, SD cards, a small sewing kit
S	5½ × 3½ × 3½ in	14 × 9 × 9 cm	9¾ in	makeup basics, sewing notions, chargers
M	7 × 4 × 4 in	18 × 10 × 10 cm	11¾ in	a full makeup kit, a phone and wallet
L	8 × 4½ × 4½ in	20.5 × 11.5 × 11.5 cm	13¼ in	travel-size toiletries
XL	10 × 4½ × 4½ in	25.5 × 11.5 × 11.5 cm	15¼ in	pens and pencils, a toothbrush kit, crochet hooks
Long	13 × 4½ × 4½ in	33 × 11.5 × 11.5 cm	18¼ in	makeup brushes, 10-in knitting needles, rulers

Finished sizes: width × height × depth. The zipper coil is the cut length between the tabs.

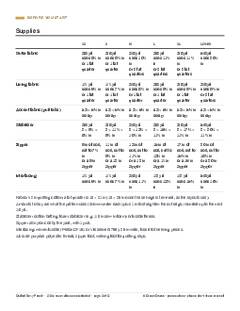

Supplies for each size

Supply	XS	S	M	L	XL	Long
Outer fabric	⅜ yd or 1 fat quarter (42 in wide)	⅜ yd or 1 fat quarter (42 in wide)	⅜ yd or 2 fat quarters (42 in wide)	⅜ yd or 2 fat quarters (42 in wide)	⅜ yd or 2 fat quarters (42 in wide)	⅝ yd (42 in wide)
Lining fabric	¼ yd or 1 fat quarter (42 in wide)	¼ yd or 1 fat quarter (42 in wide)	⅜ yd or 1 fat quarter (42 in wide)	⅜ yd or 1 fat quarter (42 in wide)	⅜ yd or 1 fat quarter (42 in wide)	⅜ yd or 2 fat quarters (42 in wide)
Stabilizercotton batting, foam stabilizer (e.g. 1/8 in sew-in foam) or fusible fleece	⅜ yd (42 in wide)	⅜ yd (42 in wide)	⅜ yd (42 in wide)	⅜ yd (42 in wide)	⅜ yd (42 in wide)	⅝ yd (42 in wide)
Zipper#5 nylon coil by the yd	9 in, with 1 pull, or a 9 in zipper	11 in, with 1 pull, or a 12 in zipper	13 in, with 1 pull, or a 12 in zipper	15 in, with 1 pull, or a 14 in zipper	17 in, with 1 pull, or a 16 in zipper	20 in, with 1 pull, or a 20 in zipper
Interfacingwoven fusible interfacing (Pellon SF101 or Vlieseline G700)	¼ yd (20 in wide) for the lining pieces	¼ yd (20 in wide) for the lining pieces	⅜ yd (20 in wide) for the lining pieces	½ yd (20 in wide) for the lining pieces	½ yd (20 in wide) for the lining pieces	⅝ yd (20 in wide) for the lining pieces

Accent fabric (pull tabs): a small scrap.

XS: 2 fat quarters (1 outer, 1 lining) plus a small scrap for the accent.
S: 2 fat quarters (1 outer, 1 lining) plus a small scrap for the accent.
M: 3 fat quarters (2 outer, 1 lining) plus a small scrap for the accent.
L: 3 fat quarters (2 outer, 1 lining) plus a small scrap for the accent.
XL: 3 fat quarters (2 outer, 1 lining) plus a small scrap for the accent.

Tools

all-purpose polyester thread
zipper foot
walking foot for quilting
clips

The steps

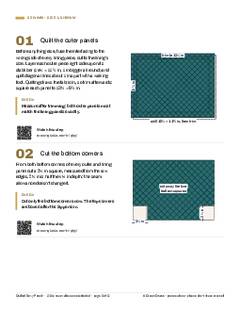

Quilt the outer panels
Cut the bottom corners

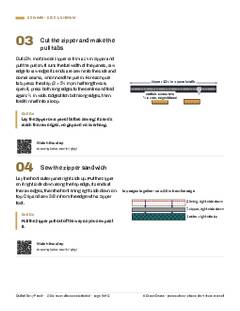

Cut the zipper and make the pull tabs
Sew the zipper sandwich

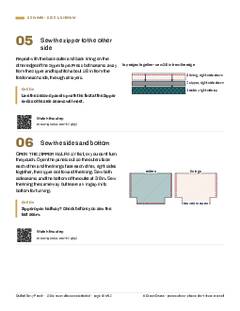

Sew the zipper to the other side
Sew the sides and bottom

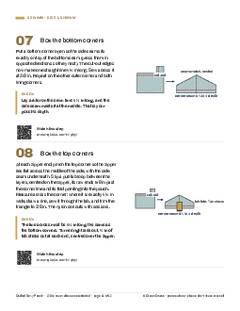

Box the bottom corners
Box the top corners

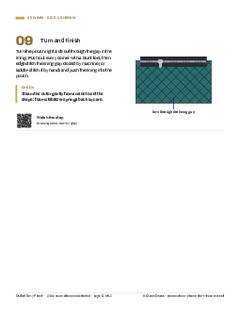

Turn and finish

Step names only. Every step is drawn out in the PDF with the measurements for your size.

What's in the PDF

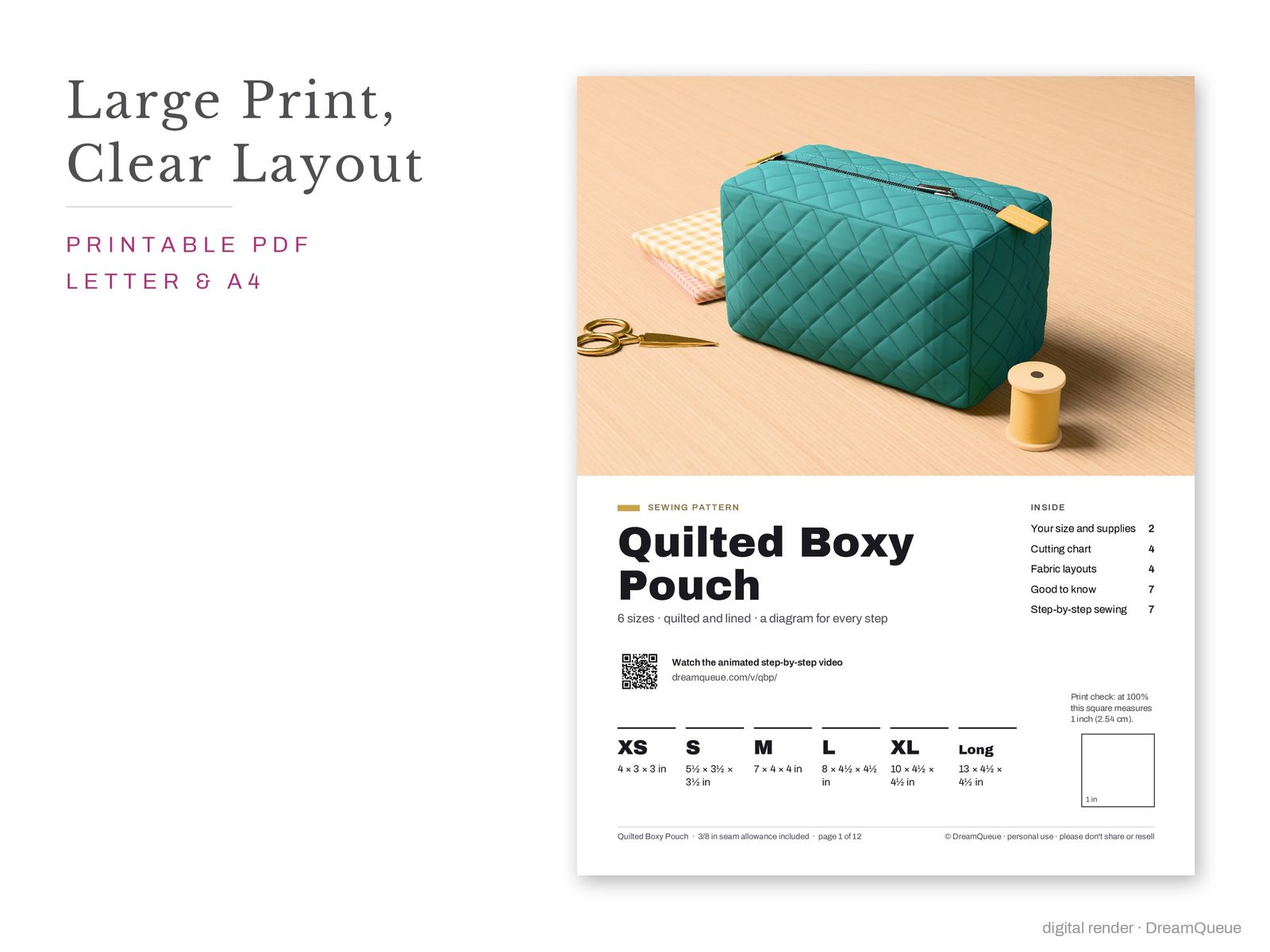

Cover with the finished sizes

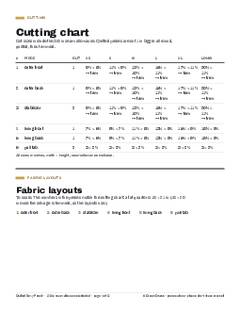

Cutting list and fabric per size
Quilting guide for the panels
Step-by-step assembly with diagrams
Zipper and boxed-corner steps
Finishing

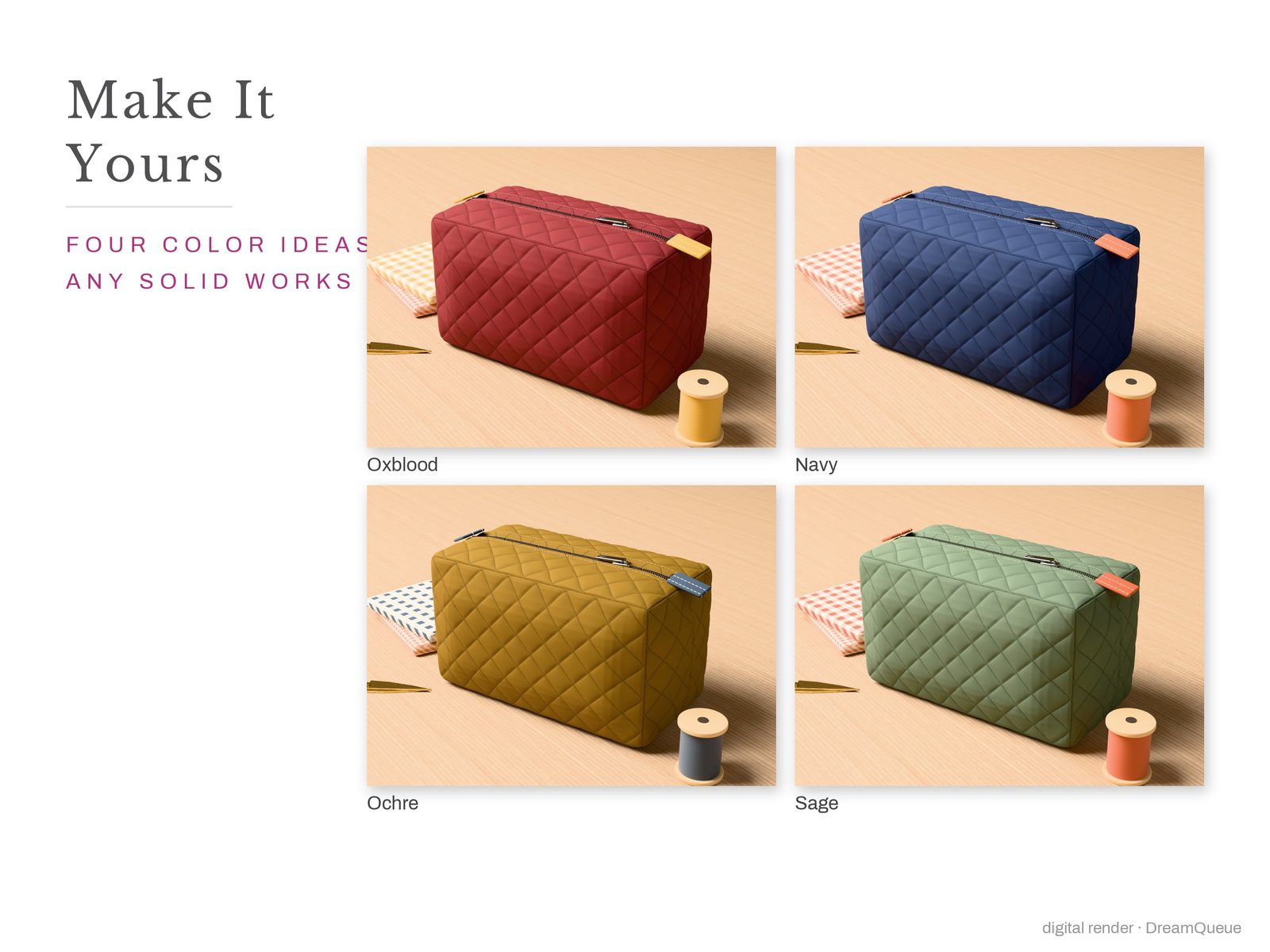

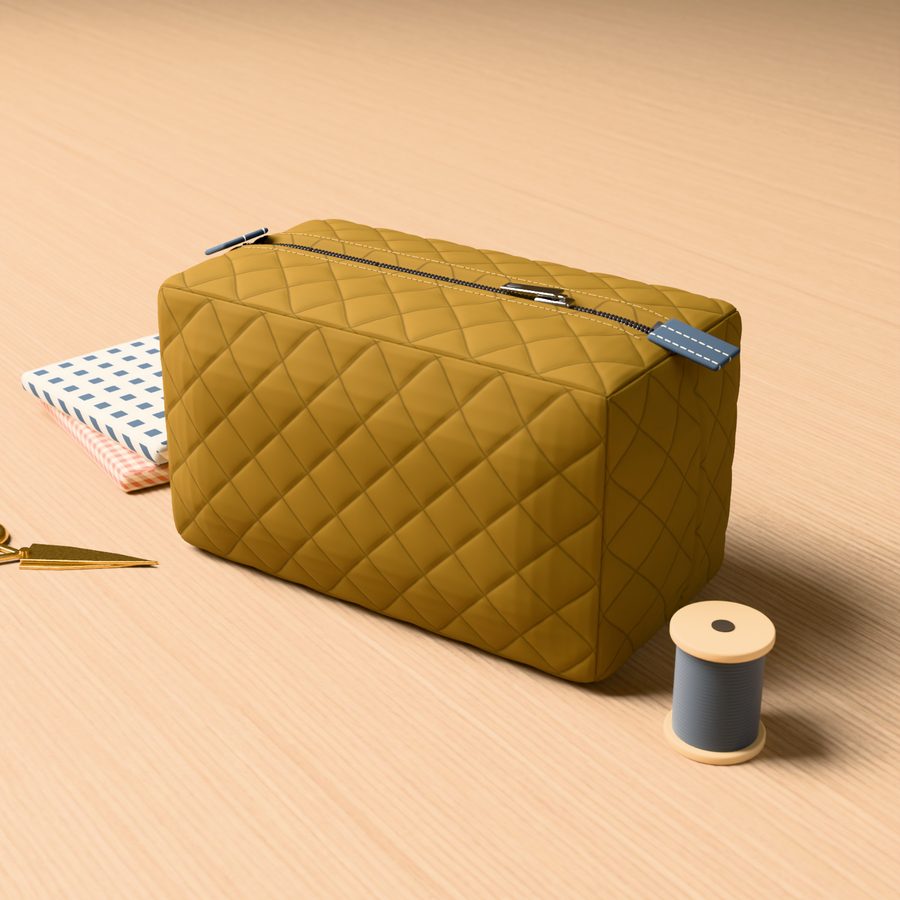

See it in color

The same geometry in 5 fabric choices.

As shown
Navy
Ochre
Oxblood
Sage

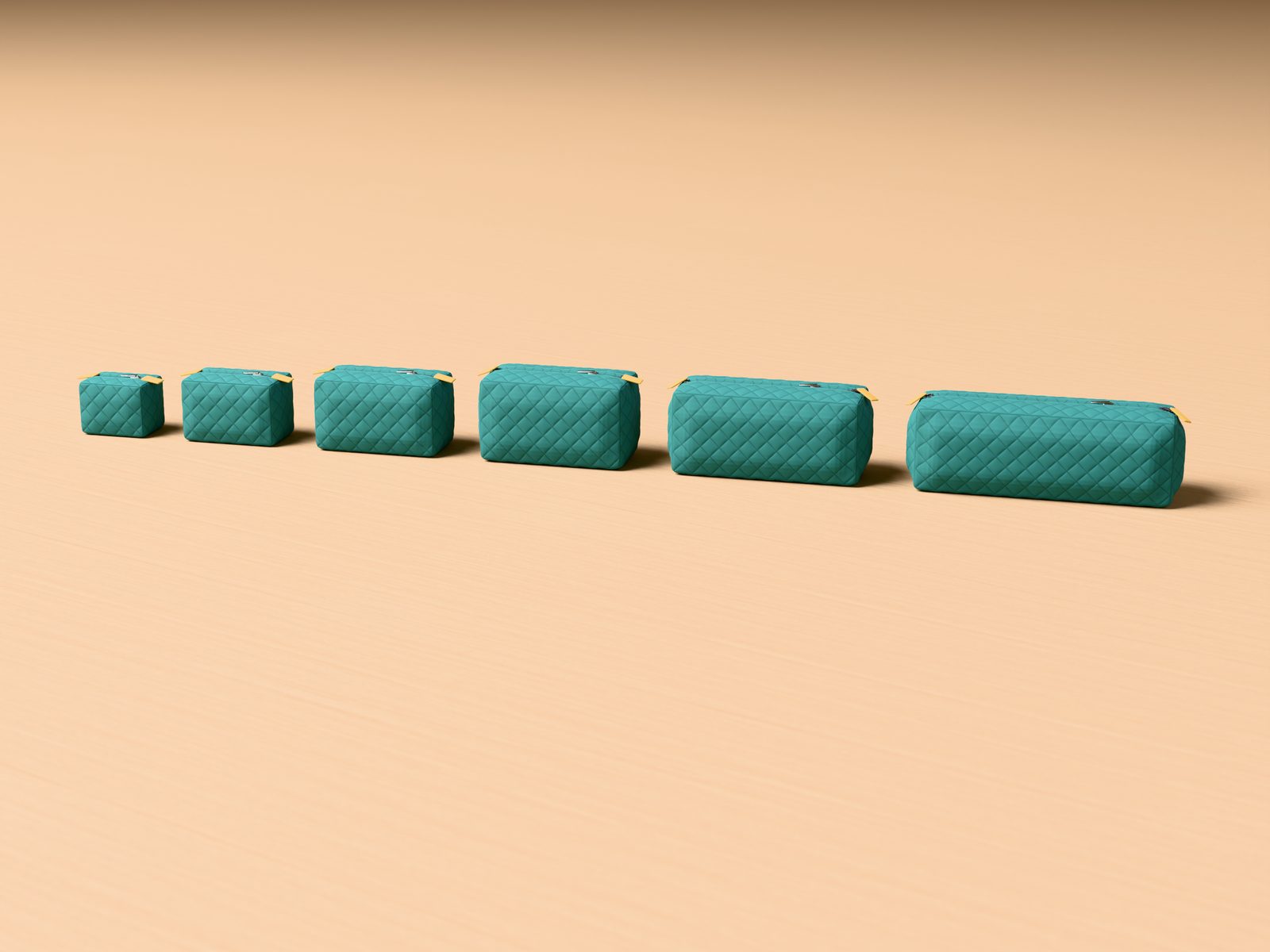

Every size side by side

Every size side by side

Questions about the Quilted Boxy Pouch

What size zipper for the L?: #5 nylon coil by the yd: 15 in, with 1 pull, or a 14 in zipper.

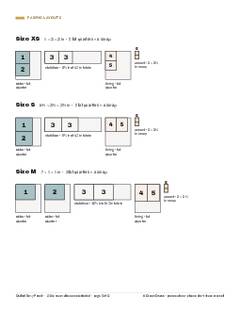

Can I make it from fat quarters?: Yes. The L takes 3 fat quarters, with the cutting layouts drawn in the pattern.
What stabilizer do I need?: Cotton batting, foam stabilizer (e.g. 1/8 in sew-in foam) or fusible fleece: 3/8 yd (42 in wide).
Is it beginner-friendly?: Confident beginner: quilted panels, a boxed base and one zipper; straight seams only.
How big is the Long?: 13 × 4½ × 4½ in (33 × 11.5 × 11.5 cm).
